Product Description

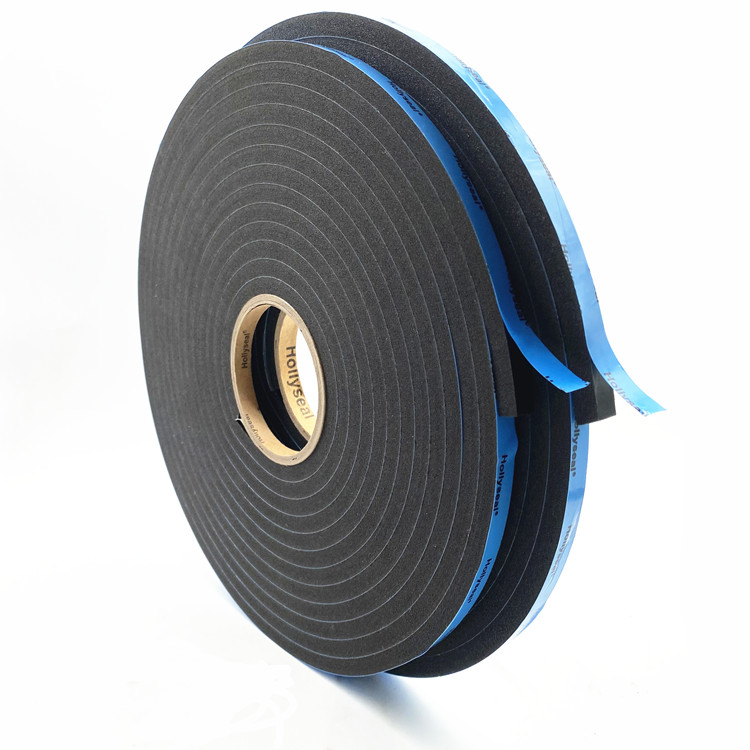

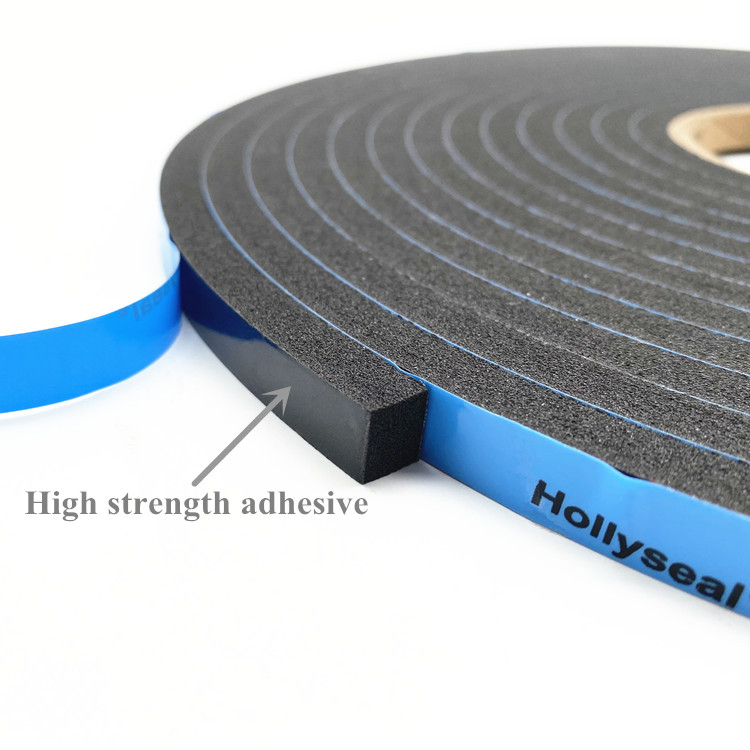

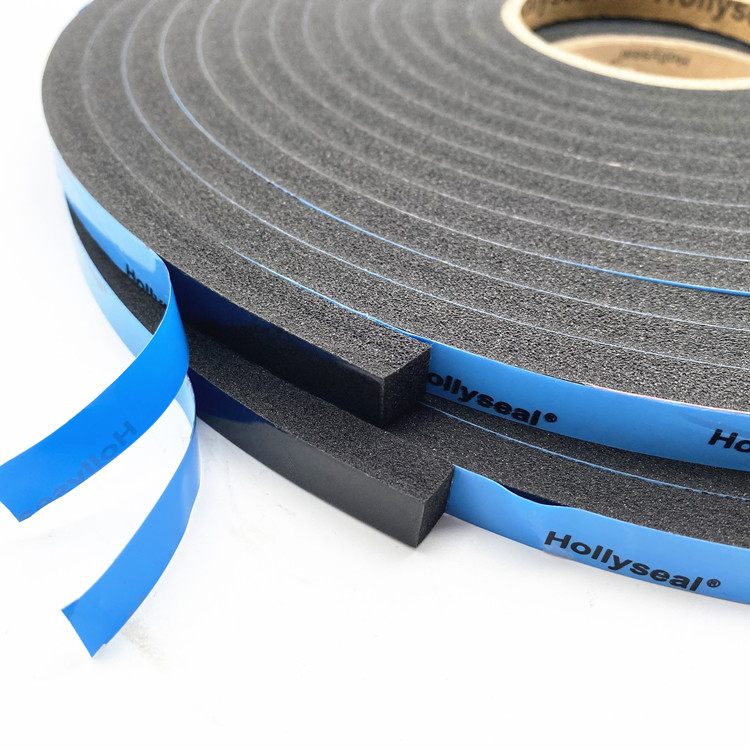

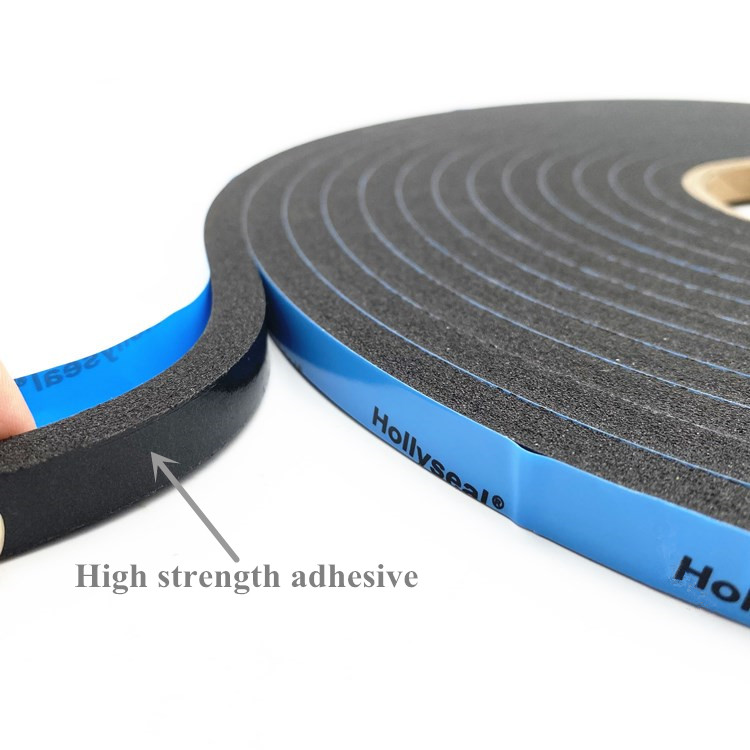

Hollyseal? PVC foam glazing tape is a PVC foam with a density of 350±50 kg/m3, coated on both sides with a high tack acrylic adhesive and with a blue film liner for easy peeling. It has a closed cell structure that allows the curing of structural silicon on all sides of the joint. It is commonly used to form a seal between double glazed units and frames in windows and doors.
Product Structure
Product Features
●High Shore hardness to ensure the thickness of joints
●Closed-cell structure, moisture-proof and waterproof
●Compatible with most chemical silicone sealants
●Excellent weatherability and UV resistance
●Good peel strength and initial adhesion
●Glass foam tape is smooth and flat on both sides
●Flame retardant rating can be customized（UL94 V-0;BS476:Part7:1997 Class1）
●Good adhesion on different surfaces, such as: metal; plastic; paper; wood and silicon
Product Applications
1. Glazing system for two-sided or four-sided structures
2. Residential and commercial window glass
3. Curtain wall glazing
4. Heating and ventilation ductwork
5. Metal, wood, vinyl sliding window systems
6. Automotive and transportation industry
Technical Information
| Density | 350±50kg/m3 |
| Hardness(Shore 00) | 70±10° |
| 180° peel strength | 0.82N/mm |
| 30% permanent compression deformation | ≤7% |
| Elongation at break | ≥70% |
| Tensile strength | ≥800kPa |
| Flame retardant | UL94 (HBF/HF-1/V-0) FMVSS 302 The above series can be customized |
Note: We can provide super low, medium low and high density PVC foam tapes.
